15 cable connector F. Bosch INDEGO 350 400 Connect 800 - Original 3m
* Incl. VAT excl. Shipping

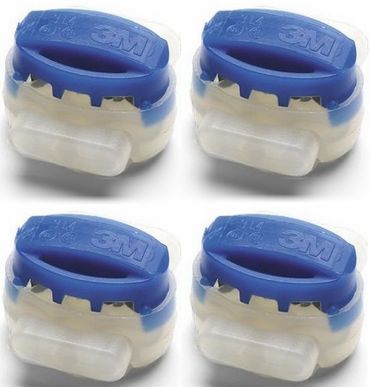

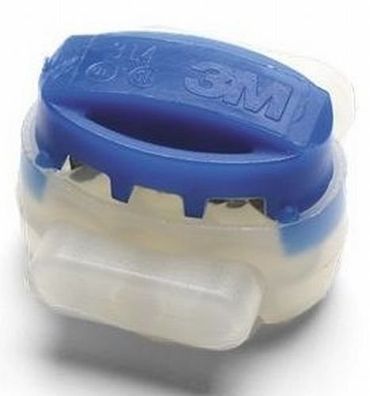

15x cable connector Wire connector (blue)- original Scotchlok 314 from 3m®
- Repair Connection of a Cut wire/installation of the Search Cable
- no isolation of the cable necessary due to the proven U-Contact principle
- With gel filling: Waterproof , moisture resistant , weatherproof
- For all Bosch® Indego Lawnmower models: Indego 350, Indego 350 Connect, Indego 400, Indego 400 Connect, Indego 800

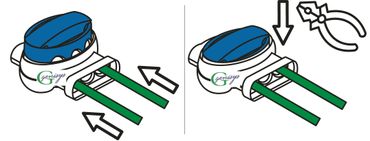

The two cable ends of the cut-out cable must be pushed into the connector just to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
Then the blue part must be completely pressed in (the simplest way with a combination pliers) in order to ensure a permanent connection.
The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).
Manufacturer's Specifications:
- temperature, operating max.: 140 °c
- temperature, operating min.:-40 °c
- Max diameter wire: 3, 94mm
- Rated current 15a
- Up to 600 V
15x cable connector Wire connector (blue)- original Scotchlok 314 from 3m®
- Repair Connection of a Cut wire/installation of the Search Cable
- no isolation of the cable necessary due to the proven U-Contact principle
- With gel filling: Waterproof , moisture resistant , weatherproof
- For all Bosch® Indego Lawnmower models: Indego 350, Indego 350 Connect, Indego 400, Indego 400 Connect, Indego 800
The two cable ends of the cut-out cable must be pushed into the connector just to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
Then the blue part must be completely pressed in (the simplest way with a combination pliers) in order to ensure a permanent connection.
The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).
Manufacturer's Specifications:
- temperature, operating max.: 140 °c
- temperature, operating min.:-40 °c
- Max diameter wire: 3, 94mm
- Rated current 15a
- Up to 600 V
| Item ID | 31935 |
| Condition | New |
| Age rating | No age restriction |
| Model | V3M-Bo-314-15 |
| Manufacturer | Genisys |
| Manufacturing country | Germany |
| Content | 15 piece |
| Weight | 70 g |
| Net weight | 60 g |
| Dimensions | 90×80×20 mm |
