15 Cable connectors + 5 connection terminals for Husqvarna Automower (original v. 3m)
* Incl. VAT excl. Shipping

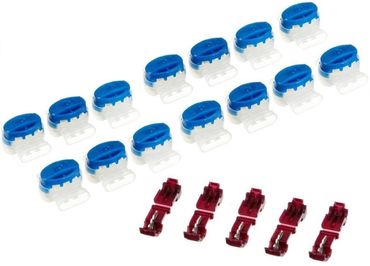

15x cable connector (blue) and 5x connection terminals (red)
Original Scotchlok 314 and 951 from 3m
With grease filling water resistant for 2 or 3 veins (blue)
For all Husqvarna® Automower ® Lawnmower models: 105, 220AC, 230ACX, 260ACX, 265ACX,
305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X
To connect the Begrenzungschleife and the search cable during installation or repair
The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).
The original Scotchlok 314 from 3m is a grease-filled connector that ensures an absolutely waterproof, moisture-proof connection.
The cable connectors are weather resistant and therefore ideal for outdoor use.
The cable does not need to be stripped off!! Simply press together with combination pliers.
3m Scotchlock Single-wire connectors are used to securely connect plastic insulated power or signal cables
With a maximum outer diameter (with insulation) of 3.94 mm
The connectors operate according to the proven U-Contact principle.
The wires to be connected are introduced into the connector without prior stripping.
By light pressure, e.g. with a combination pliers, the under-Spring-voltage U-Contact penetrates the insulation
And thus establishes a firm, vibration-proof and permanent connection in one operation.
They offer:
- 15 (Scotchlok 314) Cable connector + 5 (Scotchlok 951) connection Terminals of 3m ®
- Suitable for all husqvarna Automower models: 105, 220AC, 230ACX, 260ACX, 265ACX, 305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X,...
Manufacturer's Specifications:
- Manufacturer 3MTM
- Connector, IDC, 314, PK100t
- Connector type: wire-to-board
- Connection: IDC
- Wire size number, AWG: 14AWG
- Material, Insulation: nylon
- Color: Blue
- Series: SCOTCHLOK
- Material, contact-: Brass
- Edition, contact: Tin
- Wire size number, AWG max.: 14AWG
- Wire size number, AWG min.: 22AWG
- Wire thickness, max., mm ²: 1.5 mm ²
- Wire thickness, min, mm ²: 0.5 mm ²
- Rated current 15a
- Up to 600 V
- temperature, operating max.: 140 °c
- temperature, operating min.:-40 °c
- Diameter, wire: 3, 94mm
15x cable connector (blue) and 5x connection terminals (red)
Original Scotchlok 314 and 951 from 3m
With grease filling water resistant for 2 or 3 veins (blue)
For all Husqvarna® Automower ® Lawnmower models: 105, 220AC, 230ACX, 260ACX, 265ACX,
305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X
To connect the Begrenzungschleife and the search cable during installation or repair
The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).
The original Scotchlok 314 from 3m is a grease-filled connector that ensures an absolutely waterproof, moisture-proof connection.
The cable connectors are weather resistant and therefore ideal for outdoor use.
The cable does not need to be stripped off!! Simply press together with combination pliers.
3m Scotchlock Single-wire connectors are used to securely connect plastic insulated power or signal cables
With a maximum outer diameter (with insulation) of 3.94 mm
The connectors operate according to the proven U-Contact principle.
The wires to be connected are introduced into the connector without prior stripping.
By light pressure, e.g. with a combination pliers, the under-Spring-voltage U-Contact penetrates the insulation
And thus establishes a firm, vibration-proof and permanent connection in one operation.
They offer:
- 15 (Scotchlok 314) Cable connector + 5 (Scotchlok 951) connection Terminals of 3m ®
- Suitable for all husqvarna Automower models: 105, 220AC, 230ACX, 260ACX, 265ACX, 305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X,...
Manufacturer's Specifications:
- Manufacturer 3MTM
- Connector, IDC, 314, PK100t
- Connector type: wire-to-board
- Connection: IDC
- Wire size number, AWG: 14AWG
- Material, Insulation: nylon
- Color: Blue
- Series: SCOTCHLOK
- Material, contact-: Brass
- Edition, contact: Tin
- Wire size number, AWG max.: 14AWG
- Wire size number, AWG min.: 22AWG
- Wire thickness, max., mm ²: 1.5 mm ²
- Wire thickness, min, mm ²: 0.5 mm ²
- Rated current 15a
- Up to 600 V
- temperature, operating max.: 140 °c
- temperature, operating min.:-40 °c
- Diameter, wire: 3, 94mm
| Item ID | 11411 |
| Condition | New |
| Age rating | No age restriction |
| Model | V3M-HU-314x15+951x5 |
| Manufacturer | Genisys |
| Manufacturing country | Germany |
| Content | 20 piece |
| Weight | 75 g |
| Net weight | 65 g |
| Dimensions | 90×80×20 mm |
