15 Cable connectors + 5 Connection terminals for ROBOMOW RX* RC* RS*
* Incl. VAT excl. Shipping

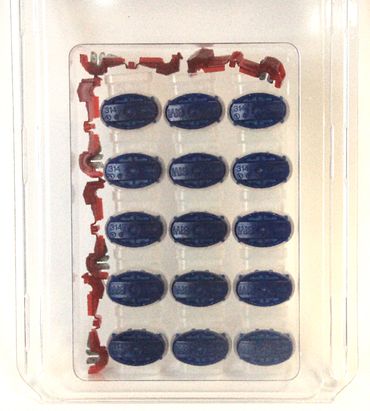

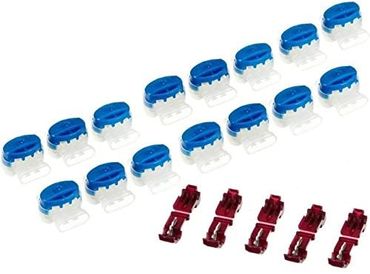

15x cable connector Wire connectors (blue) and 5x connection terminals (red)- original Scotchlok 314 and 951 of 3m® in the re Clos able storage Box
- Repair Connection of a cut wire/installation of the search cable/connection of the cable to the charging station
- no isolation of the cable necessary due to the proven U-Contact principle
- With gel filling (314): Waterproof , moisture resistant , weather resistant
- For all Robomow®-Lawnmower models: RX20, RX20u, RX20 Pro, RC304, RC304u, RC304 Pro, RC308, RC308u, RC308 Pro, RC312, RC312u, RC312 Pro S, RS615u, RS615, RS615 Pro, RS622, RS625u, RS625 Pro, RS630, RS635 Pro S,...
The two cable ends of the cut-out cable must be pushed into the connector all the way to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
ThenThe blue part must be completely pushed in (easiest with a combination pliers) in order to ensure a permanent connection.
To connect to the charging station, place the end of the cable in the U-contact of the terminal and press together. (depending on the model-please check with the lawnmower manufacturer)
The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).
Manufacturer's Specifications:
- temperature, operating max.: 140 °c
- temperature, operating min.:-40 °c
- Max diameter wire: 3, 94mm
- Rated current 15a
- Up to 600 V
15x cable connector Wire connectors (blue) and 5x connection terminals (red)- original Scotchlok 314 and 951 of 3m® in the re Clos able storage Box
- Repair Connection of a cut wire/installation of the search cable/connection of the cable to the charging station
- no isolation of the cable necessary due to the proven U-Contact principle
- With gel filling (314): Waterproof , moisture resistant , weather resistant
- For all Robomow®-Lawnmower models: RX20, RX20u, RX20 Pro, RC304, RC304u, RC304 Pro, RC308, RC308u, RC308 Pro, RC312, RC312u, RC312 Pro S, RS615u, RS615, RS615 Pro, RS622, RS625u, RS625 Pro, RS630, RS635 Pro S,...
The two cable ends of the cut-out cable must be pushed into the connector all the way to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
ThenThe blue part must be completely pushed in (easiest with a combination pliers) in order to ensure a permanent connection.
To connect to the charging station, place the end of the cable in the U-contact of the terminal and press together. (depending on the model-please check with the lawnmower manufacturer)
The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).
Manufacturer's Specifications:
- temperature, operating max.: 140 °c
- temperature, operating min.:-40 °c
- Max diameter wire: 3, 94mm
- Rated current 15a
- Up to 600 V
| Item ID | 31953 |
| Condition | New |
| Age rating | No age restriction |
| Model | V3M-Ro-314x15+951x5_BOX-b |
| Manufacturer | Genisys |
| Manufacturing country | Germany |
| Content | 10 piece |
| Weight | 75 g |
| Net weight | 65 g |
| Dimensions | 90×80×20 mm |
