Genisys

20 cable connector cable Connector for Husqvarna AUTOMOWER 3m Scotchlok 314


Item number V3M-HU-314-20 (?30?50?)
RRP EUR 18.24
EUR 14.14 *
Content 20 piece
Unit price EUR 0.71 / piece
Ready for shipping, delivery in 48h
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/46jc6xkxmq45/plugin/22/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "AUqj2o6eShq39zcHWC9FECqIT6_ccS3Z7KnbVXmDjBdkeMTNSmPhLMR3fluVYotzWaBc1WmE5Y3fuwfG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYzZkNmU5Mjg3ZWU2NzQ4NmU4NzgyM2EyYjMwMjFmY2Q5ZjIxNGY0MWEzMTZjNTNlNzc0YzU4YjFlYTlkODQxMXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjMtMDItMDRUMTU6MDg6MTEuNTA4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU1lN0JDWGx3aGxVTGdNNDd5VlhPLUtfanhBUW82QzU0MkV2N3B4cDc2eWw5aTBPeDRlX2pnLWc0MVNYTGdVbGg3THhuYWozMFl3alJrV2tLQWQ4QU82bTllbUZ3In19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); }
if(typeof renderPayPalButtons === 'function') { renderPayPalButtons('63de7520bdf45', 'paylater', 'paypal', 'rect', 'gold'); } else { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('63de7520bdf45', 'paylater', 'paypal', 'rect', 'gold'); }); } if(typeof renderPayPalButtons === 'function') { renderPayPalButtons('63de7520bdf45', 'paypal', 'checkout', 'rect', 'gold'); } else { document.addEventListener('payPalScriptInitialized', () => { renderPayPalButtons('63de7520bdf45', 'paypal', 'checkout', 'rect', 'gold'); }); }
if(!document.getElementById('paypal-smart-payment-script')) { var script = document.createElement("script"); script.type = "module"; script.id = "paypal-smart-payment-script"; script.src = "https://cdn03.plentymarkets.com/46jc6xkxmq45/plugin/22/paypal/js/smartPaymentScript.js"; script.setAttribute("data-client-id", "AUqj2o6eShq39zcHWC9FECqIT6_ccS3Z7KnbVXmDjBdkeMTNSmPhLMR3fluVYotzWaBc1WmE5Y3fuwfG"); script.setAttribute("data-currency", "EUR"); script.setAttribute("data-client-token", "eyJicmFpbnRyZWUiOnsiYXV0aG9yaXphdGlvbkZpbmdlcnByaW50IjoiYzZkNmU5Mjg3ZWU2NzQ4NmU4NzgyM2EyYjMwMjFmY2Q5ZjIxNGY0MWEzMTZjNTNlNzc0YzU4YjFlYTlkODQxMXxtZXJjaGFudF9pZD1yd3dua3FnMnhnNTZobTJuJnB1YmxpY19rZXk9ajJmYzJqcHhkZzZ2cDg0ZiZjcmVhdGVkX2F0PTIwMjMtMDItMDRUMTU6MDg6MTEuNTA4WiIsInZlcnNpb24iOiIzLXBheXBhbCJ9LCJwYXlwYWwiOnsiaWRUb2tlbiI6bnVsbCwiYWNjZXNzVG9rZW4iOiJBMjFBQU1lN0JDWGx3aGxVTGdNNDd5VlhPLUtfanhBUW82QzU0MkV2N3B4cDc2eWw5aTBPeDRlX2pnLWc0MVNYTGdVbGg3THhuYWozMFl3alJrV2tLQWQ4QU82bTllbUZ3In19"); script.setAttribute("data-append-trailing-slash", ""); script.setAttribute("data-locale", "en_GB"); document.body.appendChild(script); }

* Incl. VAT excl. Shipping

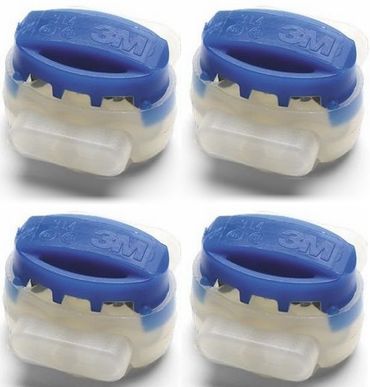

20x cable connector (blue)
Original Scotchlok 314 by 3m

With grease filling water resistant for 2 or 3 veins
For all Husqvarna® Automower ® Lawnmower models: 105, 220AC, 230ACX, 260ACX, 265ACX,
305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X


To connect the Begrenzungschleife and the search cable during installation or repair

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

The original Scotchlok™ 314 from 3m™ is a grease-filled connector that ensures an absolutely waterproof, moisture-proof connection.
The cable connectors are weather resistant and therefore ideal for outdoor use.
The cable does not need to be stripped off!! Simply press together with combination pliers.
3m Scotchlock Single-wire connectors are used to securely connect plastic insulated power or signal cables
With a maximum outer diameter (with insulation) of 3.94 mm
The connectors operate according to the proven U-Contact principle.

The wires to be connected are introduced into the connector without prior stripping.
By light pressure, e.g. with a combination pliers, the under-Spring-voltage U-Contact penetrates the insulation
And thus establishes a firm, vibration-proof and permanent connection in one operation.

They offer:

  • 20 (Scotchlok 314) 3m ® cable Connector
  • Suitable for all husqvarna Automower models: 105, 220AC, 230ACX, 260ACX, 265ACX, 305, 308, 310, 315, 320, 330ACX, 420, 430X,
440, 450X,...

Manufacturer's Specifications:

  • Manufacturer 3MTM
  • Connector, IDC, 314, PK100t
  • Connector type: wire-to-board
  • Connection: IDC
  • Wire size number, AWG: 14AWG
  • Material, Insulation: nylon
  • Color: Blue
  • Series: SCOTCHLOK
  • Material, contact-: Brass
  • Edition, contact: Tin
  • Wire size number, AWG max.: 14AWG
  • Wire size number, AWG min.: 22AWG
  • Wire thickness, max., mm ²: 1.5 mm ²
  • Wire thickness, min, mm ²: 0.5 mm ²
  • Rated current 15a
  • Up to 600 V
  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Diameter, wire: 3, 94mm

20x cable connector (blue)
Original Scotchlok 314 by 3m

With grease filling water resistant for 2 or 3 veins
For all Husqvarna® Automower ® Lawnmower models: 105, 220AC, 230ACX, 260ACX, 265ACX,
305, 308, 310, 315, 320, 330ACX, 420, 430X, 440, 450X


To connect the Begrenzungschleife and the search cable during installation or repair

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

The original Scotchlok™ 314 from 3m™ is a grease-filled connector that ensures an absolutely waterproof, moisture-proof connection.
The cable connectors are weather resistant and therefore ideal for outdoor use.
The cable does not need to be stripped off!! Simply press together with combination pliers.
3m Scotchlock Single-wire connectors are used to securely connect plastic insulated power or signal cables
With a maximum outer diameter (with insulation) of 3.94 mm
The connectors operate according to the proven U-Contact principle.

The wires to be connected are introduced into the connector without prior stripping.
By light pressure, e.g. with a combination pliers, the under-Spring-voltage U-Contact penetrates the insulation
And thus establishes a firm, vibration-proof and permanent connection in one operation.

They offer:

  • 20 (Scotchlok 314) 3m ® cable Connector
  • Suitable for all husqvarna Automower models: 105, 220AC, 230ACX, 260ACX, 265ACX, 305, 308, 310, 315, 320, 330ACX, 420, 430X,
440, 450X,...

Manufacturer's Specifications:

  • Manufacturer 3MTM
  • Connector, IDC, 314, PK100t
  • Connector type: wire-to-board
  • Connection: IDC
  • Wire size number, AWG: 14AWG
  • Material, Insulation: nylon
  • Color: Blue
  • Series: SCOTCHLOK
  • Material, contact-: Brass
  • Edition, contact: Tin
  • Wire size number, AWG max.: 14AWG
  • Wire size number, AWG min.: 22AWG
  • Wire thickness, max., mm ²: 1.5 mm ²
  • Wire thickness, min, mm ²: 0.5 mm ²
  • Rated current 15a
  • Up to 600 V
  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Diameter, wire: 3, 94mm
Item ID 11409
Condition New
Age rating No age restriction
Model V3M-HU-314-20 (?30?50?)
Manufacturer Genisys
Manufacturing country Germany
Content 20 piece
Weight 61 g
Net weight 60 g
Dimensions 60×80×20 mm
