Genisys 15 cable connectors + 5 connection terminals compatible with LANDROID by WORX S** M** L** - resealable box - original 3M
* Incl. VAT excl. Shipping

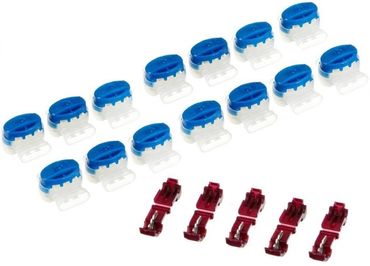

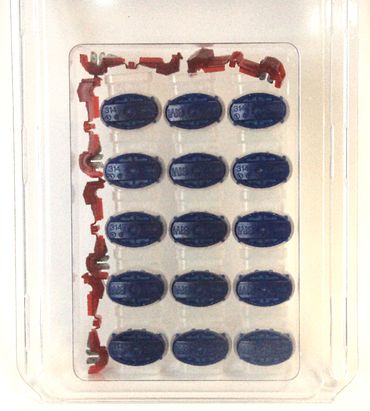

15x cable connector, wire connector (blue) and 5x terminals (red) - Original 314 and 951 of 3M® in the resealable storage box
- repair connection of a severed wire / Installation of the search cable / connector of the cable to the charging station
- , No Stripping of the cable is necessary due to the proven U-contact principle
- with gel filling (314): waterproof, moisture-resistant, weather-resistant
- compatible for all the LANDROID® WORX® models: S450i, S500i, M500, M500B, M800, M800i, M1000i, M1200i, L1500i, L2000i, ...
The two cable ends of the severed cable until the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.
The connection to the charging station, the end of the cable into the U-contact with the terminal and press together. (depending on the model of the robotic mower manufacturer)check
the manufacturer's data:
- temperature, operating, max.:140°C
- temperature, operating, min.:-40°C
- To Max. Diameter of wire: 3.94 mm
- rated current from 15A
- up to 600 V
15x cable connector, wire connector (blue) and 5x terminals (red) - Original 314 and 951 of 3M® in the resealable storage box
- repair connection of a severed wire / Installation of the search cable / connector of the cable to the charging station
- , No Stripping of the cable is necessary due to the proven U-contact principle
- with gel filling (314): waterproof, moisture-resistant, weather-resistant
- compatible for all the LANDROID® WORX® models: S450i, S500i, M500, M500B, M800, M800i, M1000i, M1200i, L1500i, L2000i, ...
The two cable ends of the severed cable until the very end of the connector to be pushed.
The 3. Hole can be free to be left, or is a search cable available (depending on the model of the robotic mower manufacturer to check).
Depending on the damage , if necessary. in addition, a piece of cable to be used, or the cable routing is slightly changed.
Then the blue part is fully pressed to be (easiest with a pair of pliers) to have a permanent connection to ensure.
The connection to the charging station, the end of the cable into the U-contact with the terminal and press together. (depending on the model of the robotic mower manufacturer)check
the manufacturer's data:
- temperature, operating, max.:140°C
- temperature, operating, min.:-40°C
- To Max. Diameter of wire: 3.94 mm
- rated current from 15A
- up to 600 V
| Item ID | 31928 |
| Condition | New |
| Age rating | No age restriction |
| Model | V3M-Wo-314x15+951x5_BOX-s |
| Manufacturer | Genisys |
| Manufacturing country | Germany |
| Content | 10 piece |
| Weight | 75 g |
| Net weight | 65 g |
| Dimensions | 90×80×20 mm |
