Genisys

15 Cable connector + 5 connection terminals F Herkules Wiper runner S sh xh - Original 3m Scotchlok


Item number V3M-He-314x15+951x5-R
RRP EUR 17.74
EUR 13.75 *
Content 20 piece
Unit price EUR 0.69 / piece
Ready for shipping, delivery in 48h

* Incl. VAT excl. Shipping

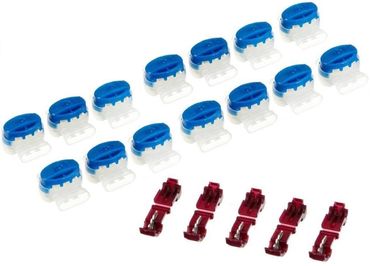

15x cable connector Wire connectors (blue) and 5x push -in terminals (red)- original Scotchlok™ 314 and 951 from 3m®

  • Repair Connection of a cut wire/installation of the search cable/connection of the cable to the charging station
  • no isolation of the cable necessary due to the proven U-Contact principle
  • With gel filling (314): Waterproof , moisture resistant , weather resistant
  • For all Herkules® -Lawnmower Models


The two cable ends of the cut-out cable must be pushed into the connector all the way to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
Then the blue part must be completely pressed in (the simplest way with a combination pliers) in order to ensure a permanent connection.
To connect to the charging station, place the end of the cable in the U-contact of the terminal and press together. (depending on the model-please check with the lawnmower manufacturer)

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

Manufacturer's Specifications:

  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Max diameter wire: 3, 94mm
  • Rated current 15a
  • Up to 600 V

15x cable connector Wire connectors (blue) and 5x push -in terminals (red)- original Scotchlok™ 314 and 951 from 3m®

  • Repair Connection of a cut wire/installation of the search cable/connection of the cable to the charging station
  • no isolation of the cable necessary due to the proven U-Contact principle
  • With gel filling (314): Waterproof , moisture resistant , weather resistant
  • For all Herkules® -Lawnmower Models


The two cable ends of the cut-out cable must be pushed into the connector all the way to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
Then the blue part must be completely pressed in (the simplest way with a combination pliers) in order to ensure a permanent connection.
To connect to the charging station, place the end of the cable in the U-contact of the terminal and press together. (depending on the model-please check with the lawnmower manufacturer)

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

Manufacturer's Specifications:

  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Max diameter wire: 3, 94mm
  • Rated current 15a
  • Up to 600 V
Item ID 32021
Condition New
Age rating No age restriction
Model V3M-He-314x15+951x5-R
Manufacturer Genisys
Manufacturing country Germany
Content 20 piece
Weight 21 g
Net weight 20 g
Dimensions 0×0×0 mm
