15 cable connector F. al-ko Robolinho 4000 4100 solo - Original 3m Scotchlok


Item number V3M-AK-314-15-c
RRP EUR 11.39
EUR 8.83 *
Content 15 piece
Unit price EUR 0.59 / piece
Ready for shipping, delivery in 48h

* Incl. VAT excl. Shipping

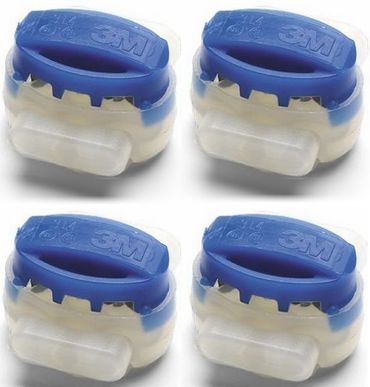

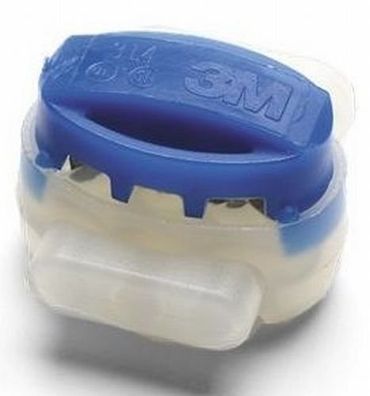

15x cable connector Wire connector (blue)- original Scotchlok™ 314 from 3m®

  • Repair Connection of a Cut wire/installation of the Search Cable
  • no isolation of the cable necessary due to the proven U-Contact principle
  • With gel filling: Waterproof , moisture resistant , weatherproof
  • For all al-ko® lawnmower models: Robolinho 4000, Robolinho 4100 solo, Robolinho 4000 solo

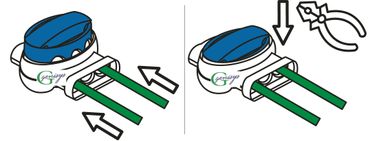

The two cable ends of the cut-out cable must be pushed into the connector just to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
Then the blue part must be completely pressed in (the simplest way with a combination pliers) in order to ensure a permanent connection.

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

Manufacturer's Specifications:

  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Max diameter wire: 3, 94mm
  • Rated current 15a
  • Up to 600 V

15x cable connector Wire connector (blue)- original Scotchlok™ 314 from 3m®

  • Repair Connection of a Cut wire/installation of the Search Cable
  • no isolation of the cable necessary due to the proven U-Contact principle
  • With gel filling: Waterproof , moisture resistant , weatherproof
  • For all al-ko® lawnmower models: Robolinho 4000, Robolinho 4100 solo, Robolinho 4000 solo


The two cable ends of the cut-out cable must be pushed into the connector just to the end .
The 3rd hole can be released or is available for a search cable (depending on the model-please check with the lawnmower manufacturer).
Depending on the damage, if necessary must be used in addition to a piece of cable or the cable guide can be changed slightly.
Then the blue part must be completely pressed in (the simplest way with a combination pliers) in order to ensure a permanent connection.

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

Manufacturer's Specifications:

  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Max diameter wire: 3, 94mm
  • Rated current 15a
  • Up to 600 V
Item ID 31917
Condition New
Age rating No age restriction
Model V3M-AK-314-15-c
Manufacturer Genisys
Manufacturing country Germany
Content 15 piece
Weight 61 g
Net weight 60 g
Dimensions 0×0×0 mm
