Genisys

15 Cable connectors + 5 connection terminals for Gardena lawnmower - Cable connector in the re-sealable box-original 3m Scotchlok


Item number V3M-Ga-314x15+951x5_BOX
RRP EUR 16.48
EUR 12.77 *
Content 20 piece
Unit price EUR 0.64 / piece
Ready for shipping, delivery in 48h

* Incl. VAT excl. Shipping

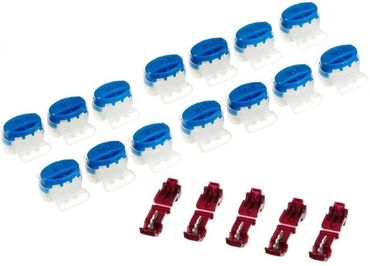

15x cable connector (blue) and 5x connection terminals (red)
Original Scotchlok 314 and 951 of 3m-with grease filling water resistant for 2 or 3 wires (blue)

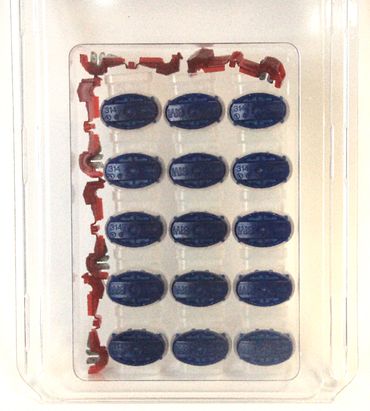

in the re-sealable , Transparent storage Box
For all Gardena® -Lawnmower models: Gardena Sileno, Gardena Sileno +, Gardena Smart Sileno, Gardena Smart Sileno +, Gardena R38Li, Gardena R40Li,
Gardena R45Li, Gardena R50Li, Gardena R70Li, Gardena R75Li, Gardena R80Li, Gardena R100Li, Gardena R130Li, Gardena R160Li, Gardena R165, Gardena R180

To connect the Begrenzungschleife and the search cable during installation or repair

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

The original Scotchlok™ 314 from 3m™ is a grease-filled connector that ensures an absolutely waterproof, moisture-proof connection.
The cable connectors are weather resistant and therefore ideal for outdoor use.
The cable does not need to be stripped off!! Simply press together with combination pliers.
3m Scotchlock Single-wire connectors are used to securely connect plastic insulated power or signal cables
With a maximum outer diameter (with insulation) of 3.94 mm
The connectors operate according to the proven U-Contact principle.

The wires to be connected are introduced into the connector without prior stripping.
By light pressure, e.g. with a combination pliers, the under-Spring-voltage U-Contact penetrates the insulation
And thus establishes a firm, vibration-proof and permanent connection in one operation.

They offer:

  • 15 (Scotchlok 314) Cable connector + 5 (Scotchlok 951) connection Terminals of 3m ®
  • Suitable for all Gardena lawnmower Models: Gardena Sileno, Gardena Sileno +, Gardena Smart Sileno, Gardena Smart Sileno +,
    Gardena R38Li, Gardena R40Li, Gardena R45Li, Gardena R50Li, Gardena R70Li, Gardena R75Li, Gardena R80Li,
    Gardena R100Li, Gardena R130Li, Gardena R160Li, Gardena R165, Gardena R180,...

You will receive a printed invoice with stated VAT.

Manufacturer's Specifications:

  • Manufacturer 3MTM
  • Connector, IDC, 314, PK100t
  • Connector type: wire-to-board
  • Connection: IDC
  • Wire size number, AWG: 14AWG
  • Material, Insulation: nylon
  • Color: Blue
  • Series: SCOTCHLOK
  • Material, contact-: Brass
  • Edition, contact: Tin
  • Wire size number, AWG max.: 14AWG
  • Wire size number, AWG min.: 22AWG
  • Wire thickness, max., mm ²: 1.5 mm ²
  • Wire thickness, min, mm ²: 0.5 mm ²
  • Rated current 15a
  • Up to 600 V
  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Diameter, wire: 3, 94mm

15x cable connector (blue) and 5x connection terminals (red)
Original Scotchlok 314 and 951 of 3m-with grease filling water resistant for 2 or 3 wires (blue)

in the re-sealable , Transparent storage Box
For all Gardena® -Lawnmower models: Gardena Sileno, Gardena Sileno +, Gardena Smart Sileno, Gardena Smart Sileno +, Gardena R38Li, Gardena R40Li,
Gardena R45Li, Gardena R50Li, Gardena R70Li, Gardena R75Li, Gardena R80Li, Gardena R100Li, Gardena R130Li, Gardena R160Li, Gardena R165, Gardena R180

To connect the Begrenzungschleife and the search cable during installation or repair

The same cable connectors are also sold by Husqvarna/Gardena for their Rasenmäherroboter (article-No.: 501980201).

The original Scotchlok™ 314 from 3m™ is a grease-filled connector that ensures an absolutely waterproof, moisture-proof connection.
The cable connectors are weather resistant and therefore ideal for outdoor use.
The cable does not need to be stripped off!! Simply press together with combination pliers.
3m Scotchlock Single-wire connectors are used to securely connect plastic insulated power or signal cables
With a maximum outer diameter (with insulation) of 3.94 mm
The connectors operate according to the proven U-Contact principle.

The wires to be connected are introduced into the connector without prior stripping.
By light pressure, e.g. with a combination pliers, the under-Spring-voltage U-Contact penetrates the insulation
And thus establishes a firm, vibration-proof and permanent connection in one operation.

They offer:

  • 15 (Scotchlok 314) Cable connector + 5 (Scotchlok 951) connection Terminals of 3m ®
  • Suitable for all Gardena lawnmower Models: Gardena Sileno, Gardena Sileno +, Gardena Smart Sileno, Gardena Smart Sileno +,
    Gardena R38Li, Gardena R40Li, Gardena R45Li, Gardena R50Li, Gardena R70Li, Gardena R75Li, Gardena R80Li,
    Gardena R100Li, Gardena R130Li, Gardena R160Li, Gardena R165, Gardena R180,...

You will receive a printed invoice with stated VAT.

Manufacturer's Specifications:

  • Manufacturer 3MTM
  • Connector, IDC, 314, PK100t
  • Connector type: wire-to-board
  • Connection: IDC
  • Wire size number, AWG: 14AWG
  • Material, Insulation: nylon
  • Color: Blue
  • Series: SCOTCHLOK
  • Material, contact-: Brass
  • Edition, contact: Tin
  • Wire size number, AWG max.: 14AWG
  • Wire size number, AWG min.: 22AWG
  • Wire thickness, max., mm ²: 1.5 mm ²
  • Wire thickness, min, mm ²: 0.5 mm ²
  • Rated current 15a
  • Up to 600 V
  • temperature, operating max.: 140 °c
  • temperature, operating min.:-40 °c
  • Diameter, wire: 3, 94mm
Item ID 31361
Condition New
Age rating No age restriction
Model V3M-Ga-314x15+951x5_BOX
Manufacturer Genisys
Manufacturing country Germany
Content 20 piece
Weight 61 g
Net weight 60 g
Dimensions 0×0×0 mm
